20TH069505

Description

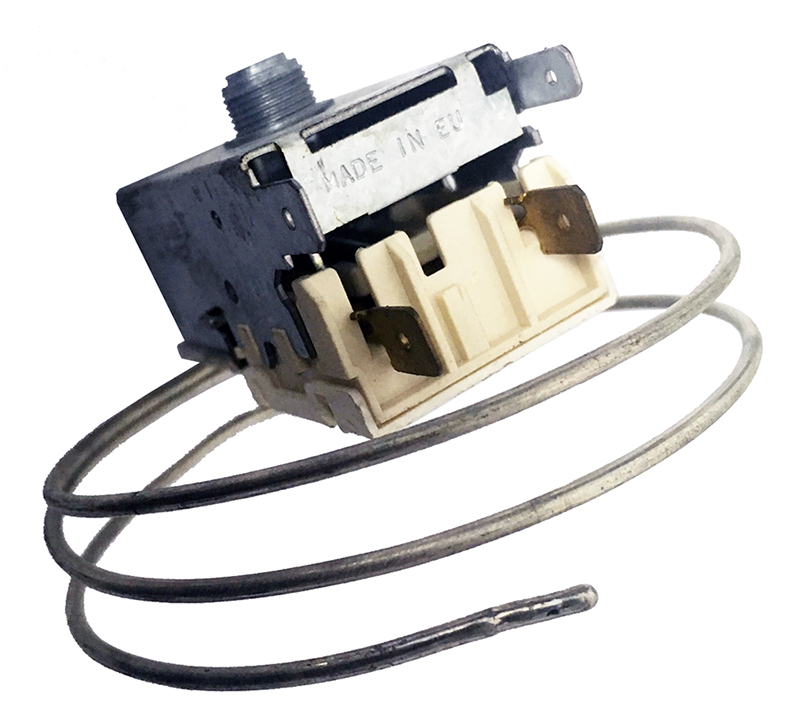

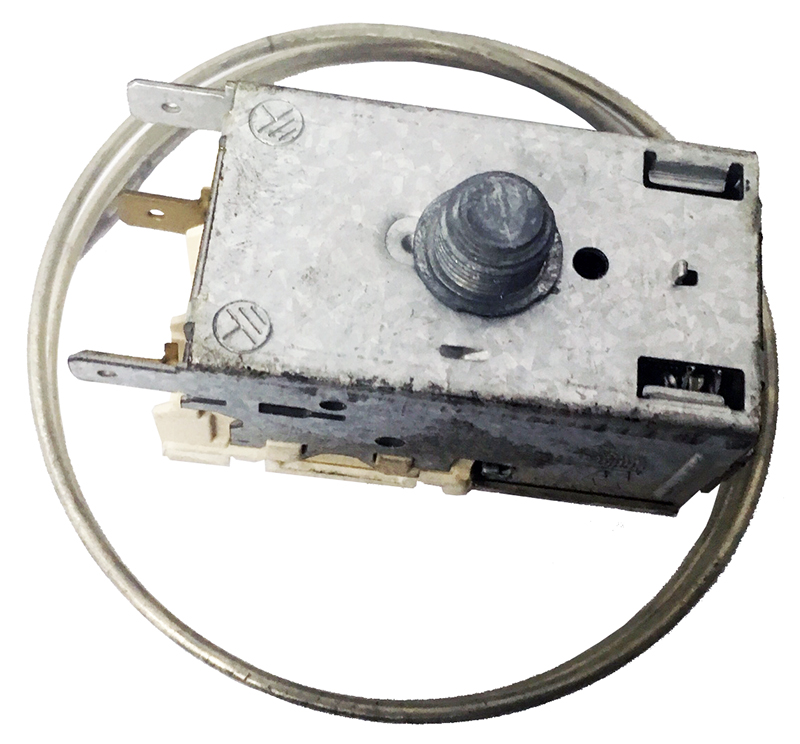

UNIVERSAL K50 cycling thermostat with SPST close-on-rise switch.

FEATURES:

• Compact size
• Fixed or adjustable operating range
• Fixed differential
• Standard mounting or with bracket
• Capillary lengths available from 300 to 3000 mm with different forms or with bulb
• Approved by the main international bodies



APPLICATIONS:

• Refrigerators
• Freezers
• Bottle coolers
• Liquid coolers
• Refrigerated display counters
• Air conditioning units

TECHNICAL SPECIFICATIONS:

• Application range between 40°C/-40°F and 10°C/50°F
• Faston terminals 6.3 or 4.8 mm
• Electrical rating terminals 3 and 4 6(6)A at 250V-(12A at 12V DC)
